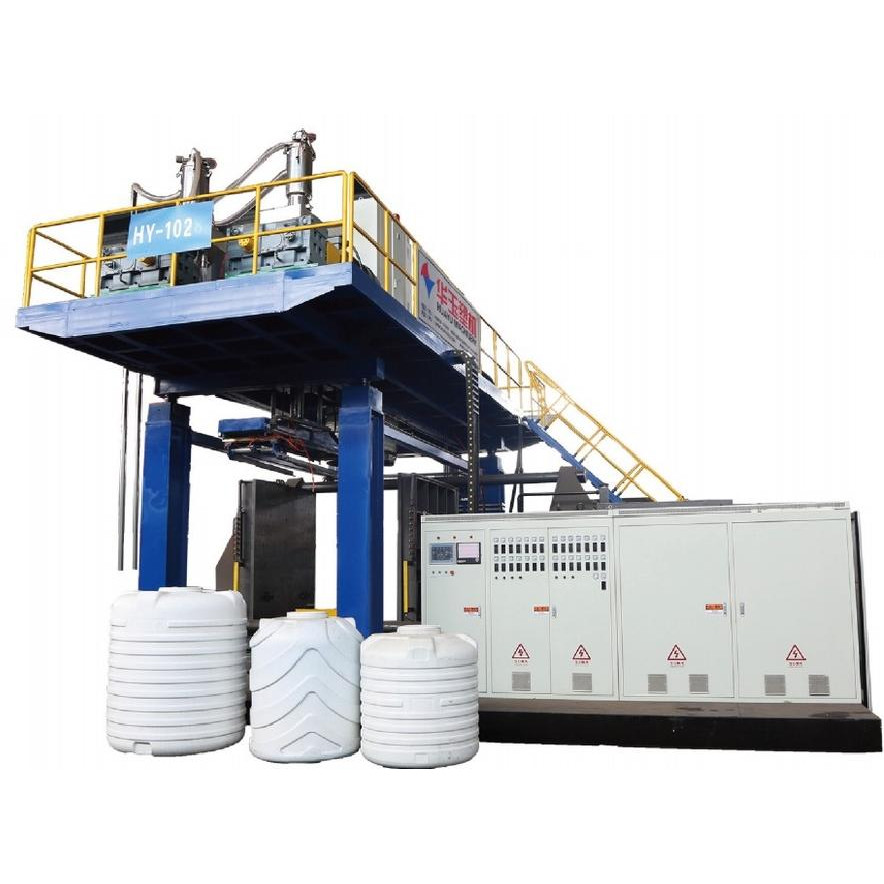

华玉中空吹塑机在设计生产过程中，采用最新科技以及配套设施，如：德国FLENDER 减速 机、西门子PLC 控制器、美国穆格壁厚控制器等，进一步优化设备的整体性能，扩大设备的应用 领域。
经验丰富的工程师团队，顶级品牌配件，严格的质量管理认证体 系，强大的机械加工能力，铸就精品华玉塑机!
技术特点
1.三油缸合模系统，增大锁模力及提高合模速度
2.华玉自主研发设计螺杆，冷却更高效，塑化更稳定 3.设备采用液压伺服驱动系统，运行更加高效稳定 4.可根据客户需求定制1-10层吹塑设备
Technical features
1.Three cylinder clamping system to increase clamping force and improve clamping speed
2.Screw developed and designed by HUAYU independently,coling more effcient and plasticizing more stable 3.The equipment adopts hydraulic servo driver system for more efficient and stable operation
4.Customizable 1-10 layers blow moulding machine according to customer needs
|
HY3000L-5000L |
HY3000-3 |
HY3000-4 |
HY3000-6 |
HY5000-4 |
HY5000-6 |
||
|

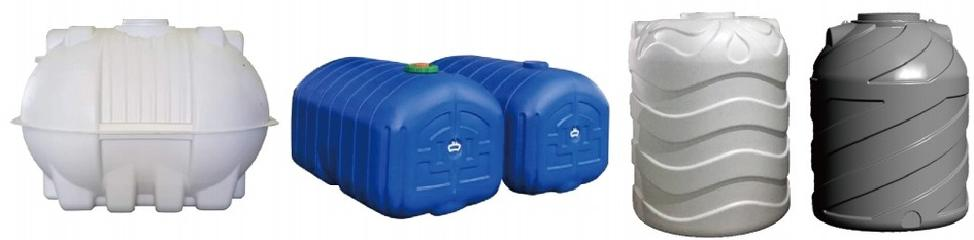

制品容积 |
Capacity range |
L |
500-3000 |
500-3000 |
500-3000 |
1500-5000 |
1500-5000 |
|
机器尺寸 |
Machine dimension |
M |
10*6.5*7.8 |
12.5*10*7.8 |
12.5*12*7.8 |
14*13*8.8 |
14*14*8.8 |
|
平均能耗 |
Average consumption |
KW |
247 |
280 |
350 |
280 |
350 |
|
总功率 |
Total power |
KW |
475.5 |
537 |
687 |
580 |
670 |
|
料缸容量 |
Accumulatorcapacity |
KG |
90 |
90 |
90 |
180 |
180 |
|
挤出电机 |
Extruder motor |
KW |
55/132/55 |
75*4 |
75*6 |
90*4 |
75*6 |
|
螺杆直径 |
Screw diameter |
MM |
100/130/100 |
110*4 |
110*6 |
120*4 |
110*6 |
|
螺杆长径比 |
Screw L/D ratio |
|
28:1 |
28:1 |
28:1 |
28:1 |
28:1 |
|
塑化能力 |
Plasticizing capacity |
KG/H |
580 |
580 |
|
800 |
850 |
|
模板尺寸 |
Platen size |
MM |
2100*2200 |
2100*2200 |
2100*2200 |
2400*2600 |
2400*2600 |
|
模板开距 |
Platen distance |
MM |
110-3200 |
110-3200 |
110-3200 |
1600-4000 |
1600-4000 |
|
锁模力 |
Clamping force |
KN |
2200 |
2200 |
2200 |
3500 |
3500 |
|
伺服电机 |
Servomotor |
KW |
55 |
55 |
55 |
60 |
60 |
